UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications

Model Number : UL1859

Brand Name : MYSUN

Place of Origin : Guangdong, China

MOQ : 3050

Conductor Material : Tinned Copper/Silver-plated Copper

Insulation Material : PFA

Rated Voltage : 600 V

Conductor Type : Solid

Shape : Round

Max Temperature : 150°C

AWG Sizes : 4/0AWG to 32AWG

Unit Length : 305/1000 M/FT

Max Conductor Resistance : 563 Ω/KM (32AWG) to 0.168 Ω/KM (4/0AWG)

Insulation Thickness : 0.350mm to 1.200mm

Nominal Diameter : 0.94mm (32AWG) to 15.66mm (4/0AWG)

Conductor Construction : 7/0.08mm (32AWG) to 7/4.42mm (4/0AWG)

Standard : UL1859

Voltage Rating : 600V

Wire Type : Insulated

Contact Now

Supplies Fortune 500 Companies Top PFA Wire Supplier In China.

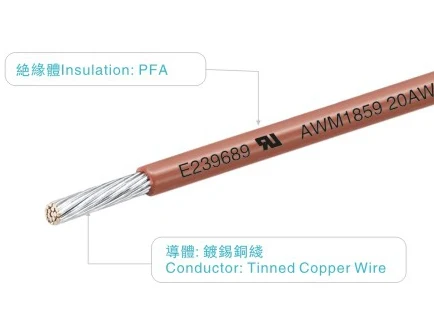

UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications
UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications
Specification
UL1859
UL1330
Conductor


Insulation

Max.Cond Resistance（Ω/KM）
Unit length
（M）（Ft）
Size
（AWG）
Construction
（No.mm）
Diameter（mm）
Nominal thickness
（mm）
Diameter（mm）


32
7/0.08
0.24
0.350
0.94
563
610/2000
30
7/0.10
0.30
0.350
1.00
381
610/2000
28
7/0.12
0.36
0.350
1.08
239
610/2000
26
7/0.16
0.48
0.350
1.18
150
610/2000
24
7/0.20
0.60
0.350
1.30
94.2
610/2000
22
19/0.15
0.75
0.350
1.45
59.4
305/1000
20
19/0.19
0.93
0.350
1.63
36.7
305/1000
18
19/0.235
1.17
0.350
1.87
23.2
305/1000
16
19/0.30
1.50
0.350
2.20
14.6
305/1000
14
19/0.37
1.85
0.350
2.55
8.96
305/1000
12
19/0.47
2.35
0.350
3.05
5.64
305/1000
10
19/0.43
3.00
0.350
3.70
3.55
305/1000
8
37/0.54
3.78
0.800
5.38
2.23








Customize
7
37/0.60
4.20
0.800
5.80
1.77
6
37/0.68
4.76
0.800
6.36
1.41
5
37/0.76
5.32
0.800
6.92
1.12
4
37/0.86
6.02
0.800
7.62
0.89
3
7/2.21
6.63
0.800
8.23
0.71
2
7/2.48
7.44
0.800
9.04
0.56
1
7/2.78
8.34
1.200
10.74
0.4268
0
7/3.20
9.60
1.200
12.00
0.3367
2/0
7/3.57
10.71
1.200
13.11
0.267
3/0
7/3.94
11.82
1.200
14.22
0.2119
4/0
7/4.42
13.26
1.200
15.66
0.168
Click Contact us Get the Best Quote
Company profile
UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications
UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications
Our Products
UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications
Application
UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications
Our Overseas Clients
UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications
Exhibition
UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications
Certifications
UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications
FAQ
1. Who Are We? We Are A Professional Manufacturer Of High-temperature Wires And Cables With 26 Years Of Electric Wire Experience. Our Headquarter Is Located In Shenzhen, Guangdong, China, And Our Two Production Bases Are Located In Dongguan, Guangdong, China And Jingzhou, Hubei, China. 2. What Can We Provide? We Can Provide High-temperature Wires And Cables, Silicone Tubing – Including Silicone Rubber Wire, XLPE, FEP/PFA/ETFE/PTFE Wire, New Energy Cable, Wiring Harnesses. 3. Why Choose Us? A.Free Sample. B.Competitive Price. C.High Quality Standard. D.Customized Service. 4. What Certifications Do We Have？ We Have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification. 5.What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU: Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
